LTD Servo Gauge

The Whessoe 1143 Mark II Servo Level Gauge offers continuous and accurate measurement of LNG levels, utilizing a servo-driven sensor that remains in direct contact with the liquid. This gauge is type-approved, ensuring it meets safety requirements for standalone use in safety-related functions.

Key features

Precise liquid level measurement

Flexibility

Handles varying LNG grades with ease.

Integration

Easily integrates with other monitoring systems for seamless operations.

Specifications

Range: standard 0-60m (maximum 70 m)

Accuracy: +/- 2 mm

Resolution: 1 mm
Range: -200°C to +50°C

Accuracy: +/- 0.1°C

Resolution: 0.01°C

Sensor type: Pt100 Class AA, IEC60751
Range: 400 kg/m3 to 1000 kg/m3

Accuracy: +/- 0.5 kg/m3

Resolution: 0.1 kg/m3

Viscosity: < 0.6x10⁻³Pa s

Sensor type: 01206-06-

Comprehensive Solutions for LNG Storage

At Svanehoj, we offer more than standalone instruments. Our solutions encompass complete safety systems tailored to onshore LNG operations. The LTD Servo Gauge is complemented by advanced systems like the Data Acquisition System (DAS) to provide seamless monitoring and control of onshore storage.

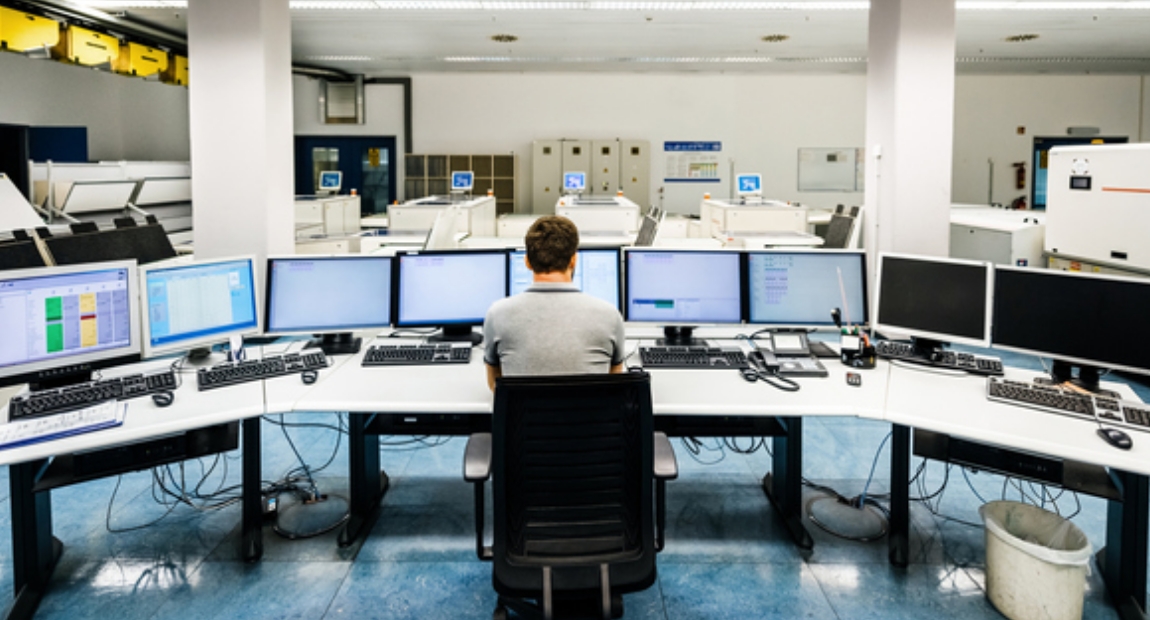

Data Acquisition System

The Data Acquisition System (DAS) is a critical component for monitoring LNG storage tanks. It serves as a hub for collecting and processing data from field instruments, ensuring seamless communication with the terminal’s Distributed Control System (DCS).
