Key features

Comprehensive communication

Includes four relay alarms and two alarm inputs for custom setups.



Configurable alarms

Includes four relay alarms and two alarm inputs for custom setups.



Robust design

Operates effectively between -20°C and +60°C.



ATEX approved

Safety certification II 2(1G), Ex d[ia] IIB T6.

Technical specifications

  • Output communication: RS485 / 0-20mA current loop
  • Protocol: WH550 or WH660
  • Input signal: temperature 1 x RTD or average temperature, 4 x relay alarms (configurable) and 2 x alarm inputs (dry contacts)
  • Optionnal: 4-20 mA passive or active output, Remote display
  • Operating temperature: - 20° to +60°C
  • Power supply: 20-75 VDC or 85-270 VAC 50/60Hz
  • ATEX approval II 2(1G), Ex d[ia] IIB T6
  • 4 x M20x150 Cable entries

Installation

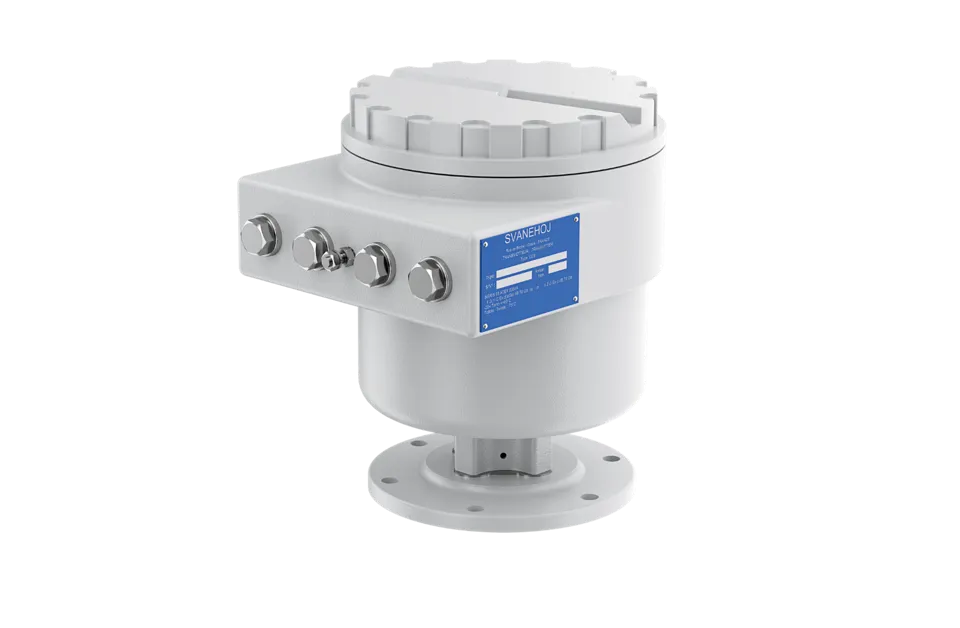

Combining the gauge 2026 and transmitter 1323 provides a comprehensive solution for chemical level measuring, ensuring unmatched precision, control, and safety. Together, these tools create a synergistic system that offers both real-time monitoring and reliable manual verification, tailored to meet the demands of complex industrial environments.

You are in safe hands

Contact us today to learn how Svanehoj Tank Control Systems can enhance precision and efficiency in chemical level measurement.
