Safeguarding your investment

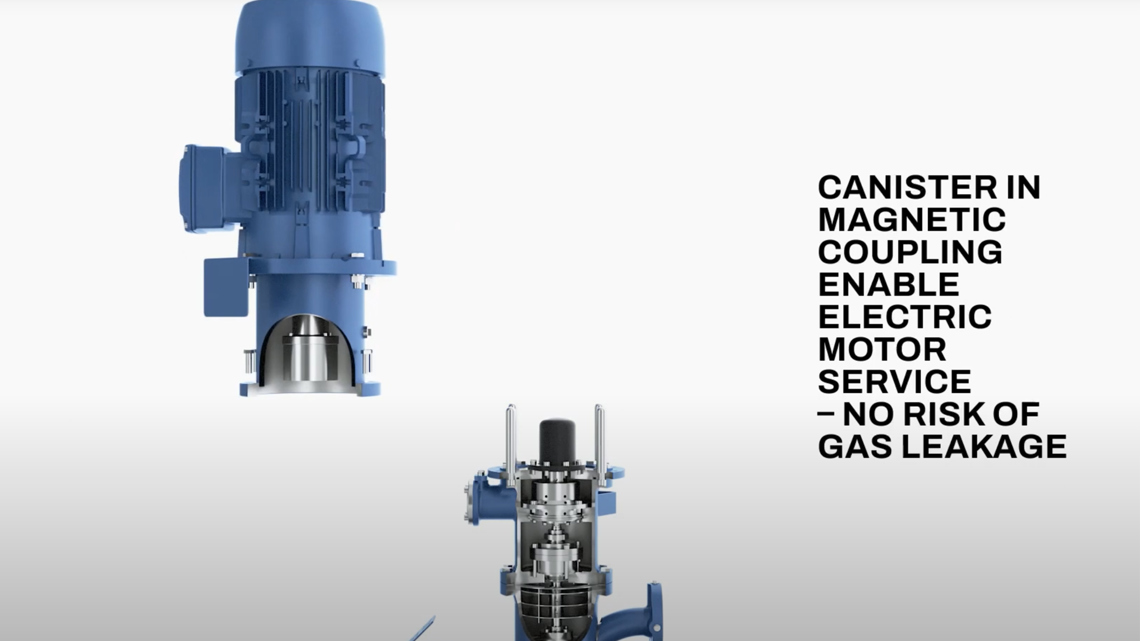

Our 3D animation of the Svanehoj DW Fuel Pump takes you through all the most important specifications.

Specifications

The DW Fuel Pump is a classic multistage centrifugal pump made of cryogenic stainless steel with a standard zone 1 marine motor. The pump’s electric motor is located outside the fuel tank, which eliminates the excess of heat and pressure, which in other cases often results in a significant energy loss when motors are located inside the fuel tank. Thanks to the unique DW design, the consumption of energy and fuel are continuously optimised and gives you a reliable and optimized solution.



Capacity: 0.25 - 35 m3/h

Head: 20 - 400 mlc

NPSHR: 0.25 mlc

Temperature: -163°C - 50°C

Key benefits of the DW Fuel Pump

  • Independent of weather conditions, sloshing, and thermal conditions.

  • No tank connections below liquid level and no electrical components inside the tank.

  • The pump can be used with both LNG and other fuel types such as ethane and LPG.

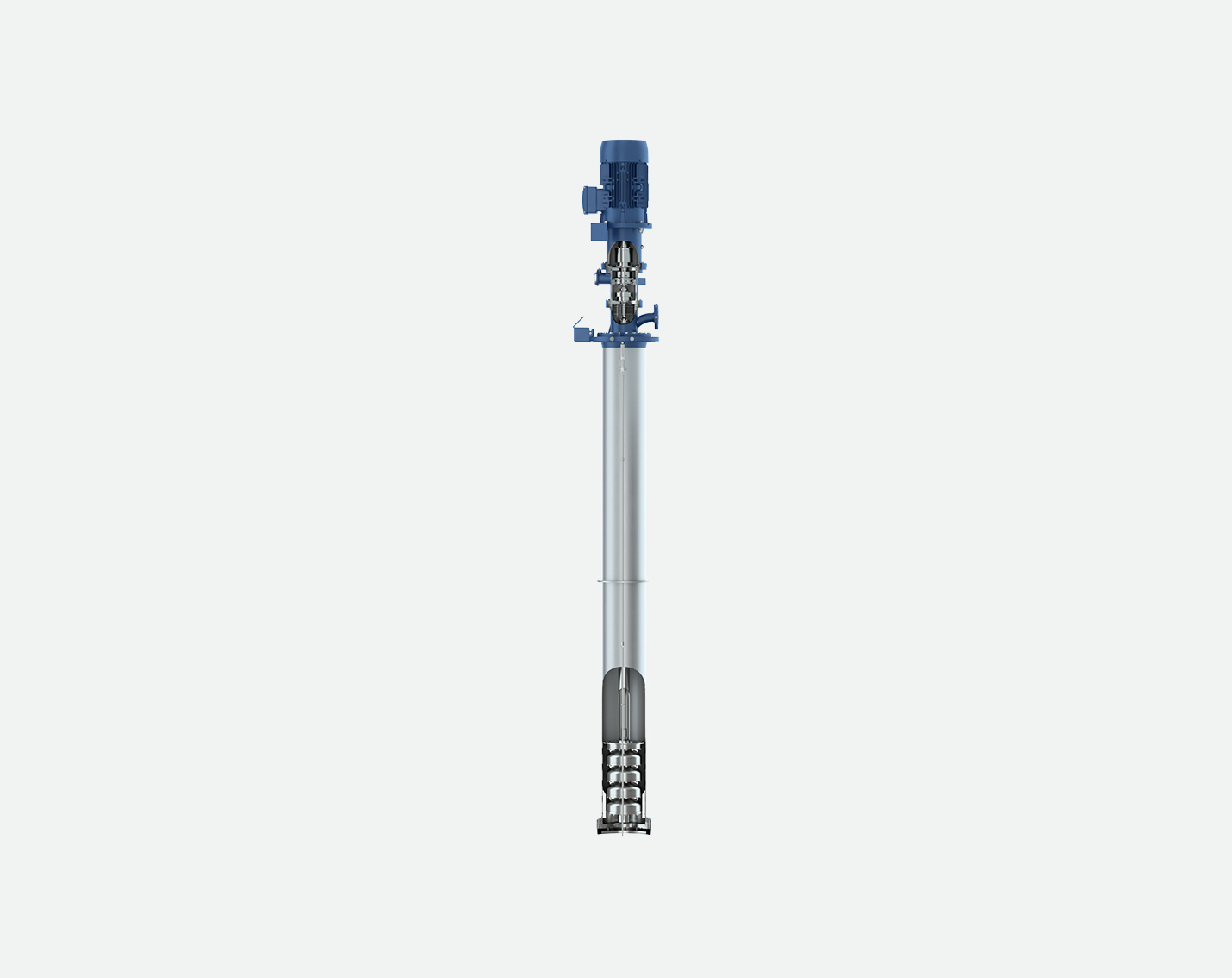

HP NH3 Booster Pump for ammonia

The NH3 Fuel Pump represents the latest advancement in ammonia fuel pump technology, engineered to handle high-pressure applications with the highest standards of safety and reliability. Utilizing Svanehoj’s well-proven pump technology, this pump features a simple yet robust design, ideal for managing the complexities of ammonia as a fuel.

Mitsubishi Shipbuilding Chooses Svanehoj Fuel Pumps for LNG Vessels

Since 2021, Mitsubishi Shipbuilding has integrated Svanehoj’s deepwell fuel pumps into its Fuel Gas Supply System (FGSS) for LNG-powered vessels, securing orders for 18 FGSS systems. The recent contract covers pump deliveries for the 16th and 17th vessels. Svanehoj’s success in Japan, led by its Kobe-based team, stems from deep market knowledge and strong partnerships with local shipyards, supporting the transition to greener fuels.

You are in safe hands

Don't hesitate to get in touch with our sales team to discover more about our deepwell fuel pumps.
