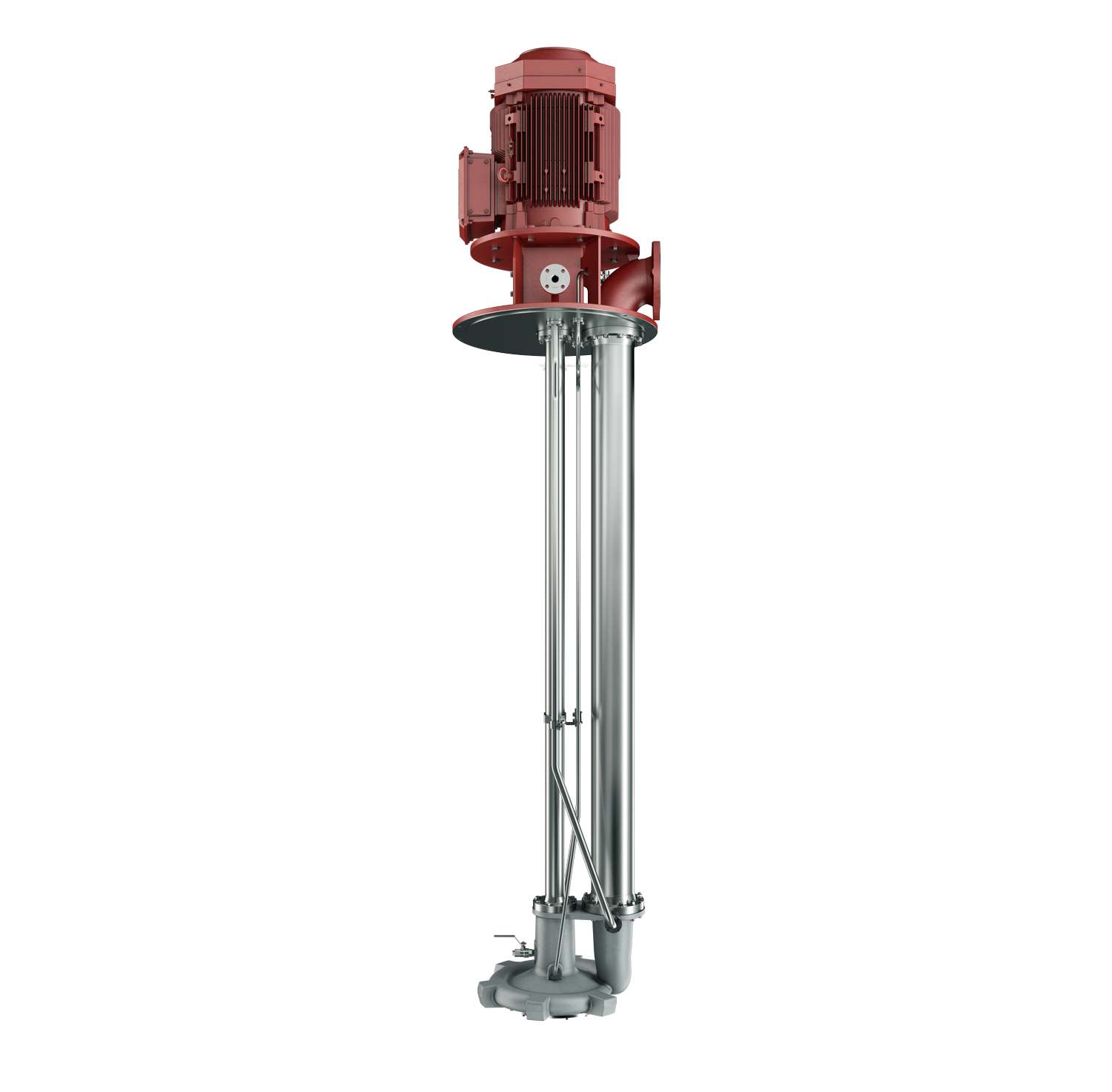

The DL and DW pumps cover capacity ranges from 30 m3/h to 500 m3/h, while the CKL pump range covers a higher range of capacity from 500 m3/h, up to 1800 m3/h. Each pump type consists of:
Electric motor
The electric motor is explosion-proof and weatherproof for safe installation on-deck. The deck arrangement includes base arrange-ment, integrated lubricating oil tank, upper drive shaft bearing, purging, and stripping connections.
Pipe stack
The pipe stack consists of a cargo pipe and an oilfilled drive shaft column with slide bearings. The oil lubricated bearings are held in position by flexible O-rings. The transmission shaft is made of carbon steel alloy.
Pump head
The fully casted pump head has a double mechanical shaft seal, stainless steel shaft, and a ball bearing arrangement. The coffer- dam between the two mechanical shaft seals has pipe connections to deck for purging. The casing wear rings are easily accessible.
Additional components
Upon request we offer additional pump components such as a hydraulically-driven portable pump, ballast pumps, multisuction solution for DW and an automatic stripping system for DL and CKL.
